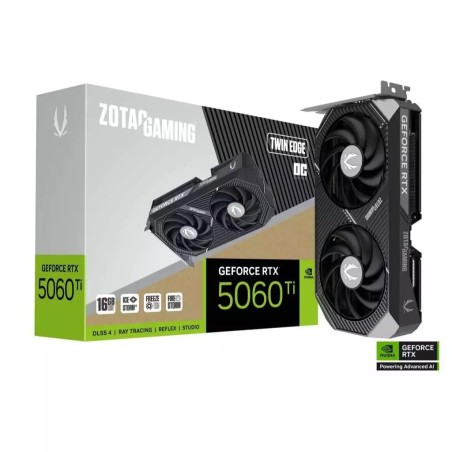

ZOTAC VGA GEFORCE RTX 5060 TI 16GB TWIN EDGE OC BLACK GDDR7 3Y

ZOTAC GAMING GeForce RTX 5060 Ti 16GB Twin Edge OC

ZT-B50620H-10M

The ZOTAC GAMING GeForce RTX 5060 Ti 16GB Twin Edge OC is a compact graphics card powered by NVIDIA‘s cutting edge Blackwell Architecture, DLSS4 and 16GB of GDDR7 memory. With a factory OC as well as a solid cooling solution, the Twin Edge OC is ready to take on the latest title releases with smooth framerates and performance.

Feature Highlights:

- Powered by the NVIDIA Blackwell architecture and DLSS 4

- 8-Pin PCIe power connector

- SFF-Ready Graphics Card

- Compact dual-fan form factor

- IceStorm 2.0 Cooling

- BladeLink Fans

- FREEZE Fan Stop

- Metal Backplate

GPU : NVIDIA GeForce RTX 5060 Ti GPU

- CUDA cores : 4608

- Video Memory : 16GB GDDR7

- Memory Bus : 128-bit

- Engine Clock : 2602 MHz

- Memory Clock : 28 Gbps

- PCI Express : PCI Express 5.0 x8

- Display Outputs : 3 x DisplayPort 2.1b with UHBR20

(up to 4K 480Hz or 8K 165Hz with DSC)

1 x HDMI® Connector

(Supports 4K 480Hz HDR or 8K 120Hz HDR with DSC, and Gaming VRR as specified in the HDMI 2.1b Specification)

- HDCP Support : 2.3

- Multi Display Capability : Quad Display

- Recommended Power Supply : 600W

- Power Consumption: 180W

- Power Input : 1 x 8-pin power input

- DirectX : Microsoft DirectX® 12 Ultimate

- OpenGL : 4.6

- Cooling : IceStorm 2.0

- Slot Size : 2

- SLI : No

- Supported OS : Windows 11 / Windows 10 64-bit (v1809 November 2018 or later)

- Card Length : 220.5mm x 120.25mm x 41.6mm / 8.7" x 4.7" x 1.6"

- Accessories : User Manual
